Dual 3D Projection (Option 4 3D Projection - Semiconductor)

The perfect combination of 2D and 3D effectively eliminates the influence of shadows and provides high quality with high-performance cameras

3D images ensure high-precision and high-speed detection.

64 bit Win10 system

High speed and high stability industrial computers can meet the increasingly intensive product testing needs.

Simple and clear user interface

The independently developed Gerber editor is easy to operate and program, and can display all on the same interface

Common functions avoid the hassle of switching back and forth between multiple interfaces, and a simple and clear interface can be suitable for any

Horizontal operator operation.

True color 3D stereoscopic image

The usual SPI can only calculate the height above the silk screen, but Pemtron applies its Color

XY's patented technology can easily distinguish between copper foil, green oil, and solder paste, thus accurately finding the zero reference plane.

In addition, it can display true color 3D images rotated at any angle, making it easier for users to see clearly

The vivid solder paste image avoids the trouble of the operator repeatedly confirming the physical object under the microscope.

High precision linear motor

Linear motors are used in both XY directions, and SATURN can achieve a motion accuracy of up to 3 μ m.

SPI Standard Component Library

Based on the experience of AOI component library, BenChuang took the lead in introducing SPI standard component library to standardize SPI parameters, that is, to achieve unified management of all program parameters.

When creating a new program, all pad parameters can be set with just one click, reducing programming time and improving the accuracy of parameter settings.

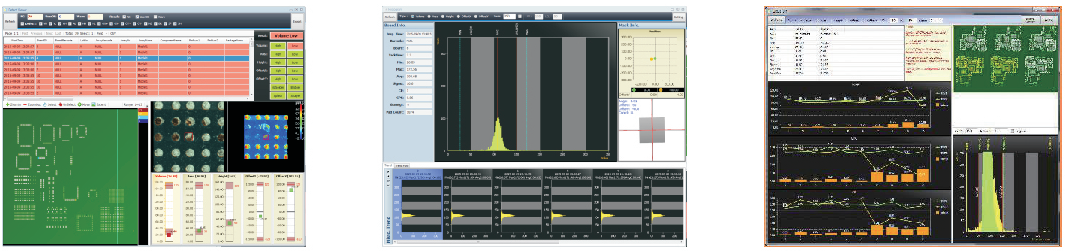

Powerful SPC function

The SPC system can analyze defective data and production situations to ensure that problems in the production process are clearly identified.

SPC's data reports can be output in PDF, Excel, or Image formats, and users can save them in the desired format.

Check the data automation system

Mounter Net - Closed loop system with SMT machine - BadMark data sharing and automatic SMT optimization

APC - Test data with SPI, automatically compensate for patch coordinates, and optimize automatically

PEMTRON SPI&AOI Closed Loop Functional-3 Point Control System

SMARTRON - One software can monitor up to 12 devices
