The two video microscopes U30 and U30s, suitable for industrial use, have excellent imaging effects. The optical lens with a 30x optical zoom ratio provides unparalleled ultra-high definition resolution for the working conditions you need, which can be used to observe even the smallest details of the product!

30:1 zoom ratio optical lens with autofocus function

Ultra high definition 8.3 million pixels, 30 frame camera, can be used for fine observation of small details

Featuring outstanding performance, it can still produce clear images even in dimly lit environments

Large working distance

Can switch between 4K Ultra HD and Full HD output standards

Optional anti-static shell and built-in infrared indicator

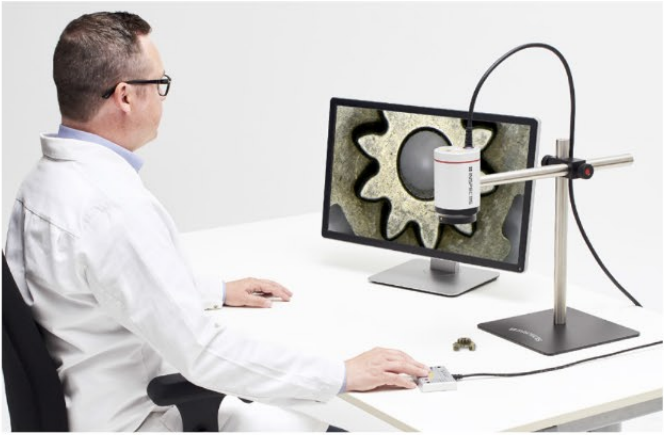

The Inspection Ultra HD Video Microscope, with its unique ergonomic design and a working distance of up to 228mm, allows operators to perform inspection tasks in the most comfortable sitting position, greatly reducing eye, neck, and shoulder fatigue and improving work efficiency.


U30s， Independent 4K system with single arm frame

Thanks to its sensitive image sensor and high-quality optical lenses, the U30/U30s can present stunning sharp and clear images across the entire field of view with low reflectivity and color difference.
The standard magnification of this system is around 2-60x (28 inch display). If a larger magnification is required, it can be achieved up to 178 times by adding lenses with different refractive powers.

Inspection video microscope is easy to operate. All commonly used parameters such as zoom, brightness, and color contrast can be operated by the operator through the function keys on the top panel of the device.

The built-in infrared locator of the optional accessory can help the operator determine the accurate position observed on the display screen

System specifications

System

   Optical System

   Inspection System Ordering Information

   Optional Accessories & Part Numbers
