Fully automated testing, complete testing, products require no employee touch, reducing the risk caused by static electricity discharge.

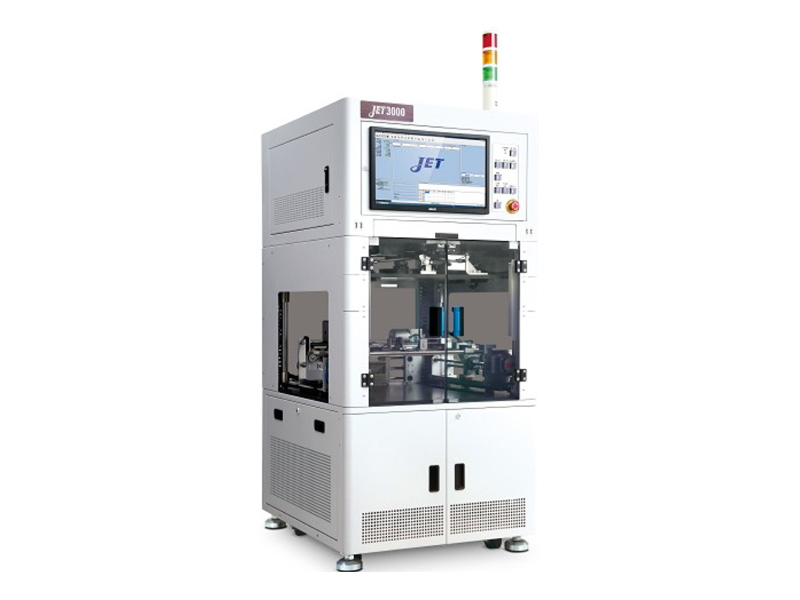

The JET 3000 ML/XL fully automated IN LINE inspection equipment solves manufacturing industry issues related to personnel, equipment, and testing in unmanned production processes. It enables you to improve yield, shorten lead times, and enhance production and testing efficiency. The equipment offers real-time monitoring, inspection history tracing, quality analysis reports, and anomaly management. It provides automated information to quickly rectify process deficiencies.

01 Application Range

◆ Unique 4 cores ICT machine in the industry

◆ Can performance the functional testing of four sub-pieces at the same time, it doesn’t need extra time

◆ Can achieve all ICT system and functional testing

◆ JET3000 can programming on each Pin of the Digital Board

◆ User friendly interface, more convenient and faster for programming

◆ Accuracy on ICT system and functional testing

◆ Precise optical scale to control the depth on pressing process, it can manage all height of fixtures

02 System Performance

Can achieve all ICT system and functional testing

◆ Multi-Core

◆ Analog Testing

◆ Digital Testing

◆ On-Board Programming

◆ Boundary Scan Testing

◆ Connection Scan Testing

◆ System Function Testing

03Feature Description

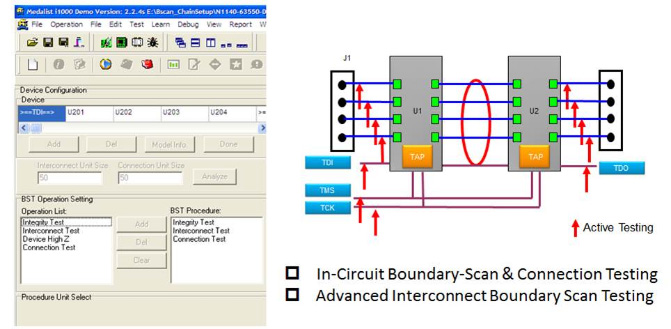

In-circuit Boundary Scan

04 Specifications

On-Board Programming (Optional)

◆ Graphical interface for faster SW editing

◆ SPI/I2C library

◆ Pattern speed: 20MHz

◆ 8 Different channel, which can write programs on 8 individual board at the same time during the testing

◆ Up to 16MBit Memory speed for writing and verifying

◆ Provide CRC authentication mode

◆ If data is bigger than 16-Mbit，Hi-Speed USB mode  is active

◆ Programmable logic level (1.2V~3.6V), resolution 1.22mV

◆ Compatible with most products on the market
