1.Ultrasonic clean+Spray very good cleaning result, especailly gaps and corners of squeegees.

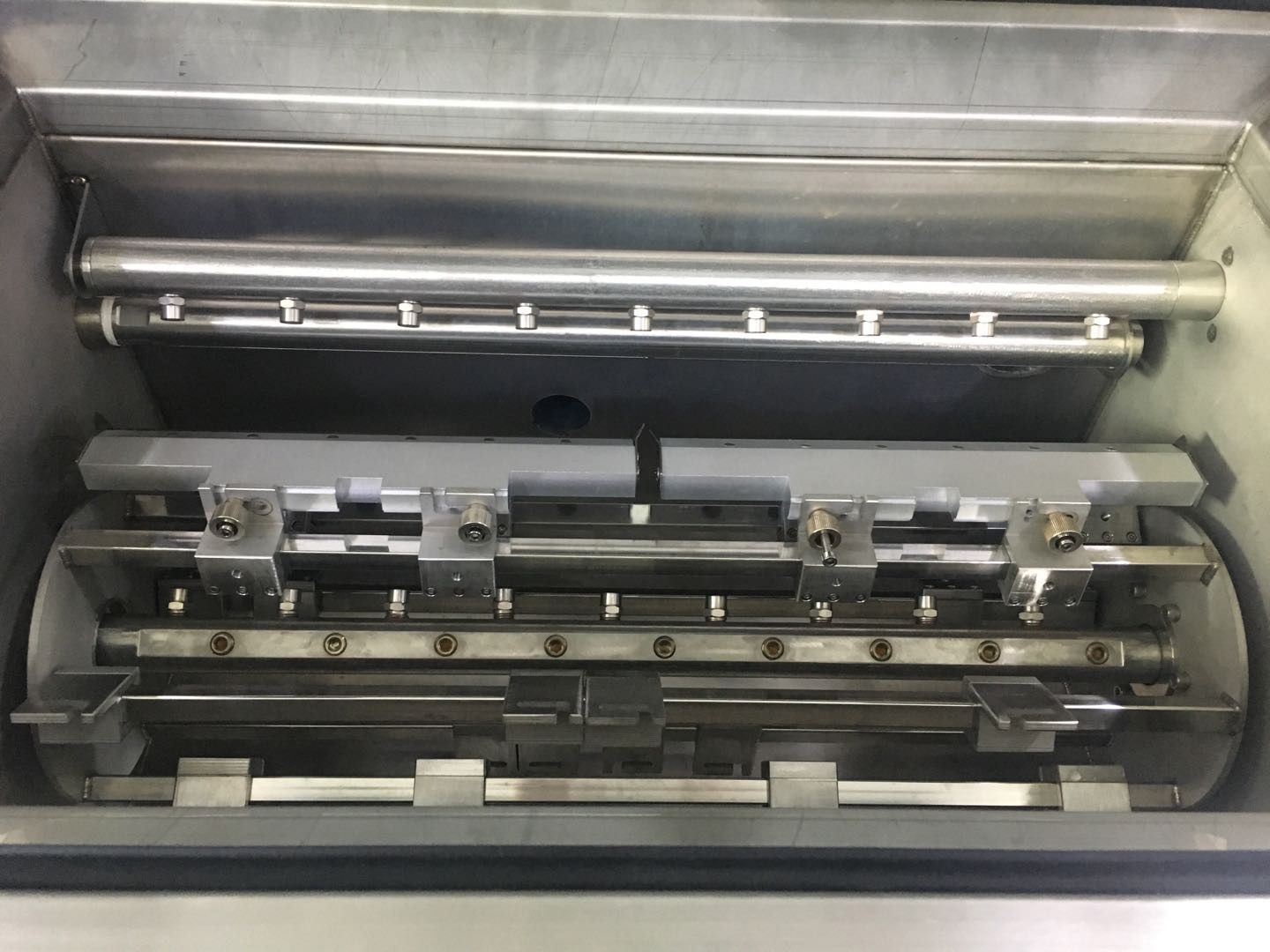

2.Rotation cleaning, 6 pcs of squeegees one time.
3.Squeegees are easy and convienent to laod and unlaod.

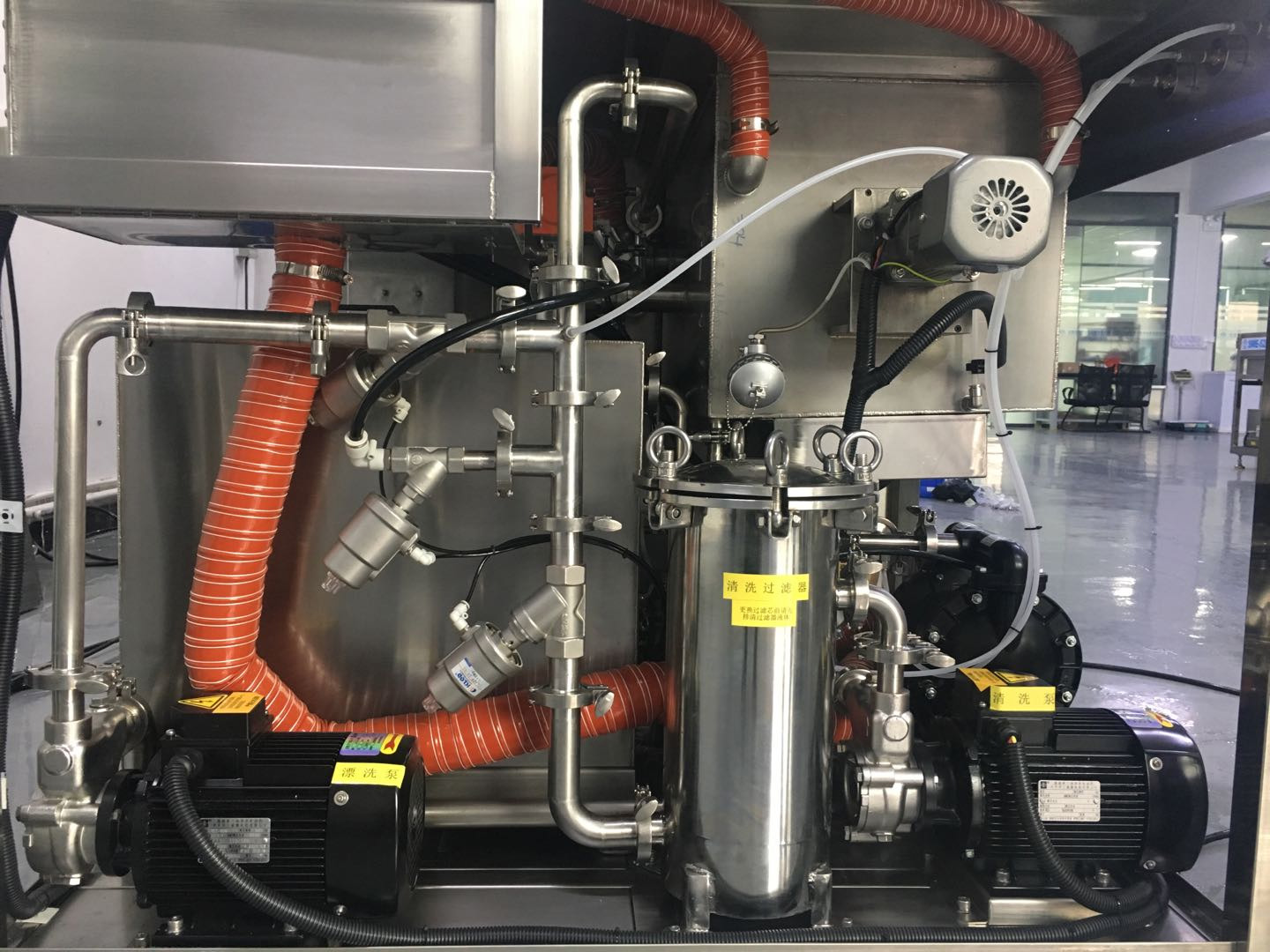

Cleaning pump,Rinse pump,Air pump
High quality electric clean pump and rinse pump.
ARO air pump, liquid and water add and discharge automatically.

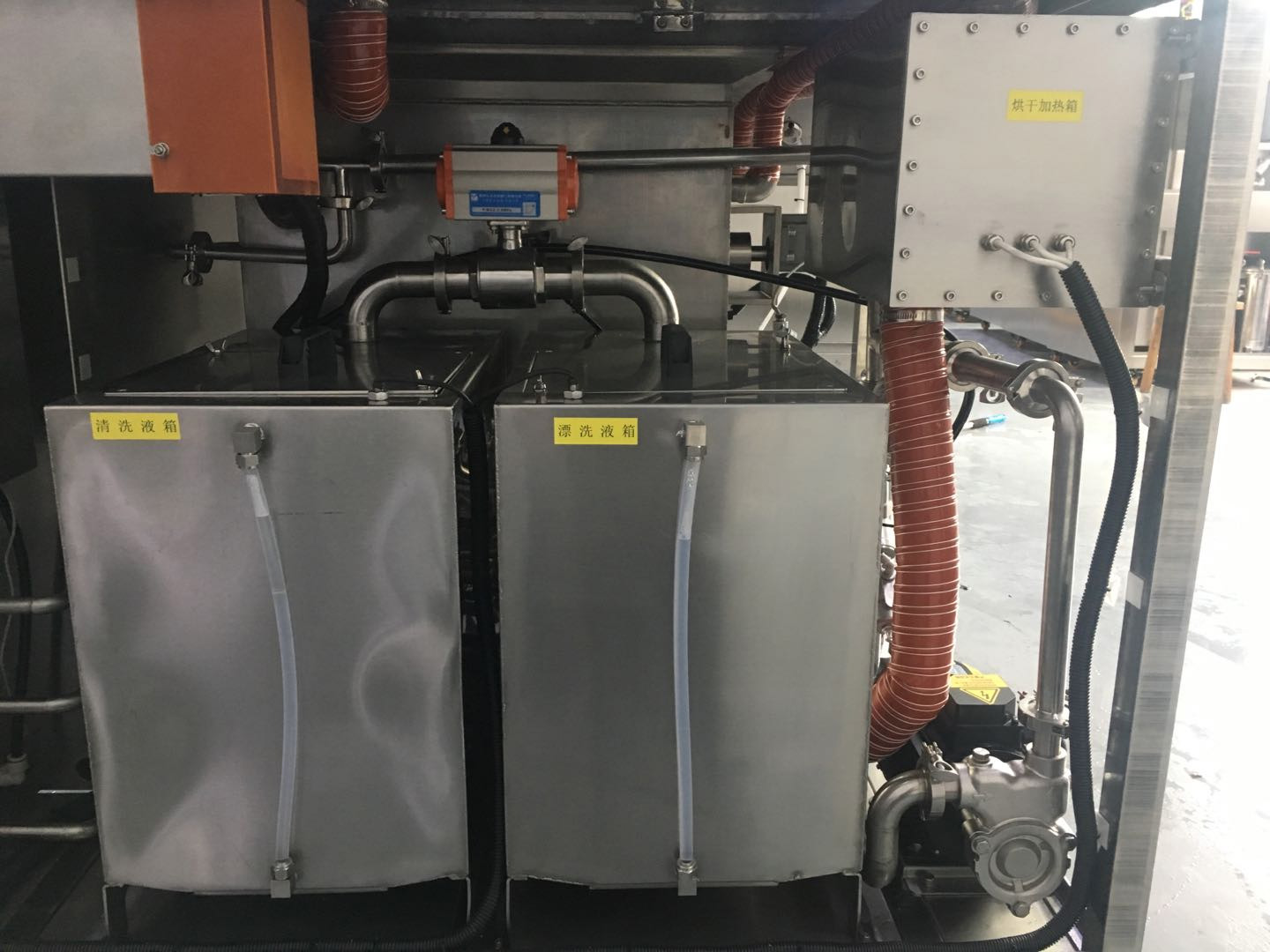

Fliter system, Liquid tank and Water tank
Real time precise cleaning filter +rinse filter, no solder balls comes back to surface of squeegees again.
Clean liquid and rinse water are recirculation used.
Both cleaning tank and rinse tank have liquid level,heat and temperature control function,protect pumps,heaters and make clean easier and more efficent.

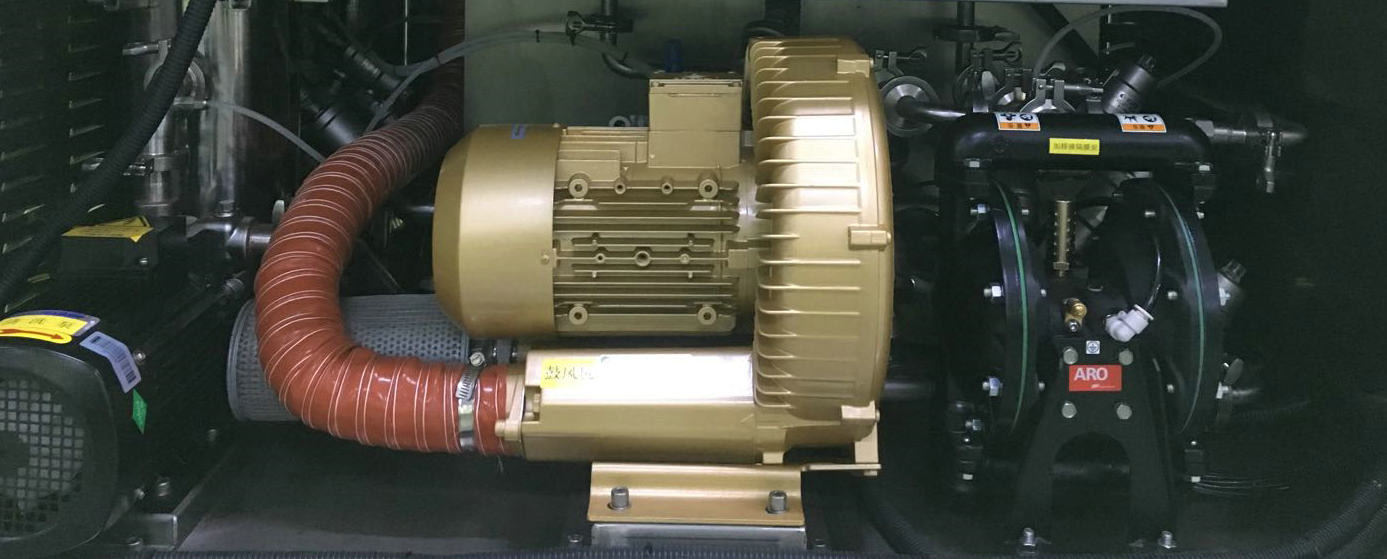

Air Blower and Pipe system
2.2KW high pressure air blower,greatly improve squeegees dry efficent.
SUS304 stainless steel pipes, angle valves. Nver use plastic pipe, no need to worry about any leak of the system.

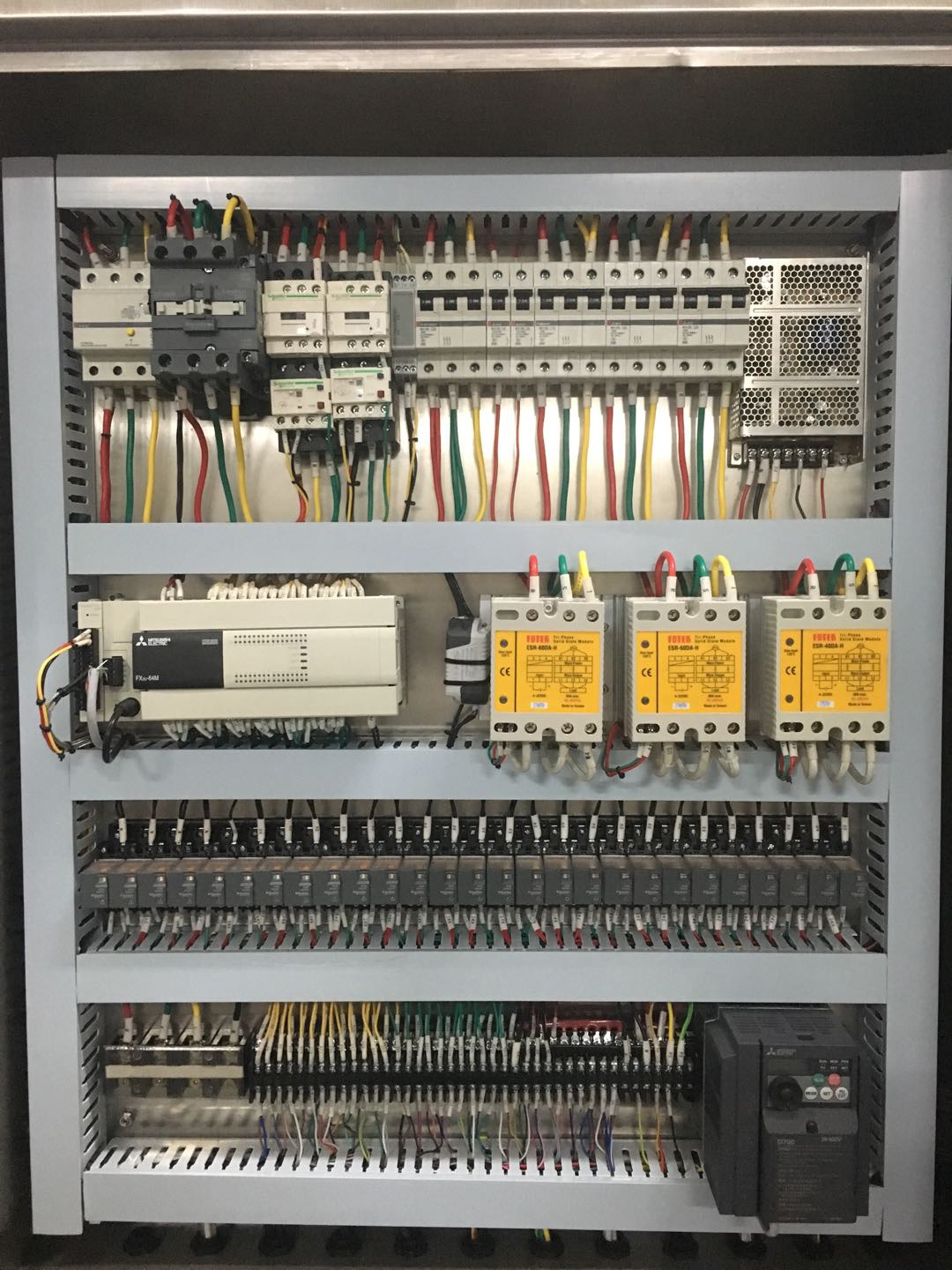

All Famous brand electric devices
Mitusbishi PLC, Touch panel, Inventer, Modular, Breakers；
Schneider Relays,AC/DC contactors, Overheat contactors.；
Omron Power, Sensor, Fotek SSR；
Pallite Indicators, IDEC buttons, CKD solenoid valves

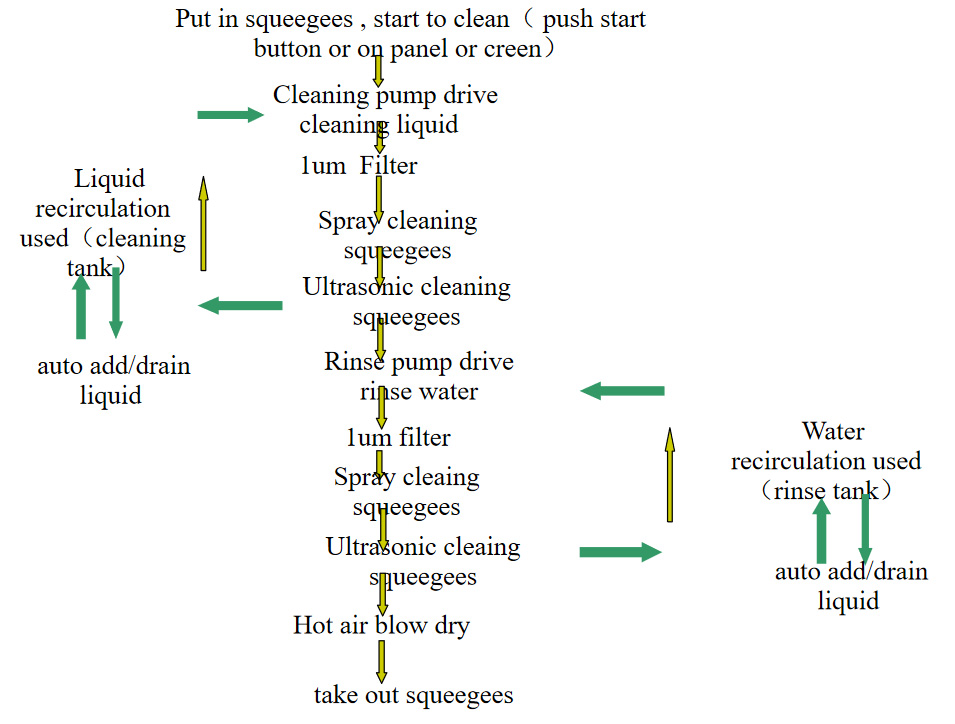

Cleaning Porcess:
Technical SPEC
|
S/N |
NAME |
SPEC |
Remarks |
|
1 |
squeegee size |
L 600mm |
as max |
|
2 |
squeegee quantity |
6 pcs |
|
|
3 |
liquid tank/water tank |
75L/75L |
|
|
4 |
clean time |
5~15min |
|
|
5 |
rinse time |
1~2min |
|
|
6 |
Dry time |
5~20min |
|
|
7 |
Clean liquid |
water -based liquid |
|
|
8 |
rinse liquid |
DI water or tap water |
|
|
9 |
Dry method |
hig pressure hot air blow dry |
|
|
10 |
Liquid temp |
Room temp~60℃ |
|
|
11 |
Dry temp |
Room tmep~90℃ |
|
|
12 |
Filter |
100um+1um |
|
|
13 |
Ultrasonic Power |
1.2KW |
|
|
14 |
Clean/rinse pump power |
1.1KW+1.1KW |
|
|
15 |
Total power |
28KW |
|
|
16 |
Power supply/Air supply |
AC380V,50/60HZ,63A /0.5~0.7Mpa |
|
|
17 |
Machine size |
L1400xW1300xH1300（mm） |
|
|
18 |
Machine weight |
500KG |
|
