Fully automatic cleaning, rinsing and drying process.

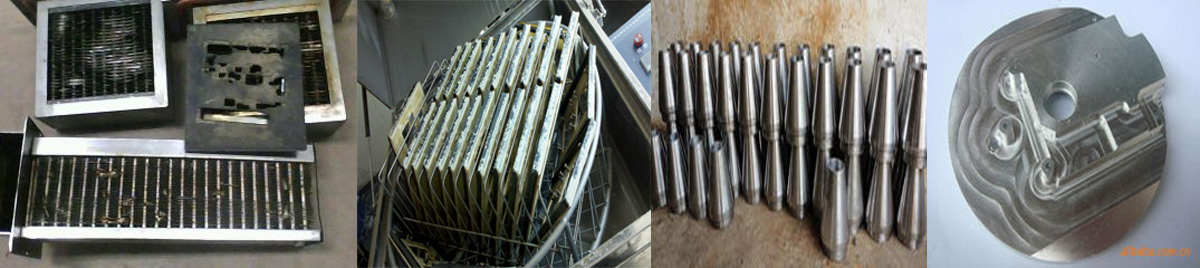

Application: Cleaning of the outer surface of various workpieces, such as cleaning of wave soldering fixtures, cleaning of reflow soldering condensers,

cleaning of various hardware parts after machining, after the equipment is disassembled, the parts are cleaned, auto parts, various shells, boxes, etc.

System structure:

Spray cleaning system:

Arrange nozzles on the top, bottom and sides of the rotating cleaning basket, while the workpiece is rotating, all nozzles spray high-pressure cleaning fluid;

Cleaning agents: water-based environmentally friendly cleaning fluid

Reservoir material: SUS304

Nozzle material: SUS304

Pump pressure: 0.5-0.6Mpa

Pump flow: 4T/H

Filtration precision: 20μm

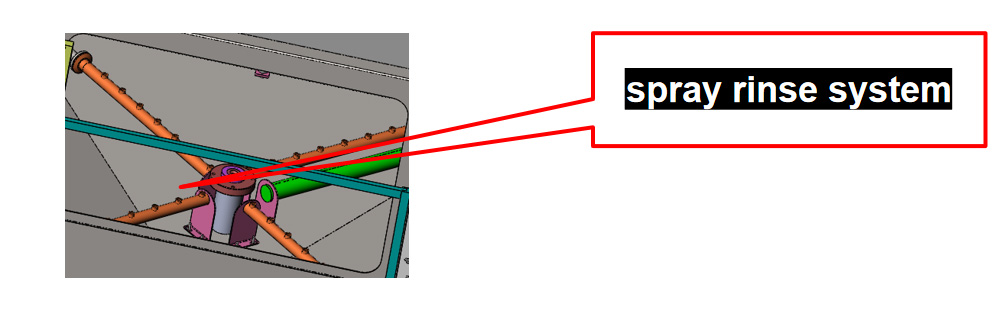

Spray rinse system:

Arrange nozzles on the top, bottom and sides of the rotating cleaning basket, while the workpiece is rotating, the nozzle sprays high-pressure water;

Cleaning agents: water

Reservoir material: SUS304

Nozzle material: SUS304

Pressure: 0.5-0.6Mpa

Pump flow: 4T/H

Filtration precision: 0.45μm

Structure of auxiliary system

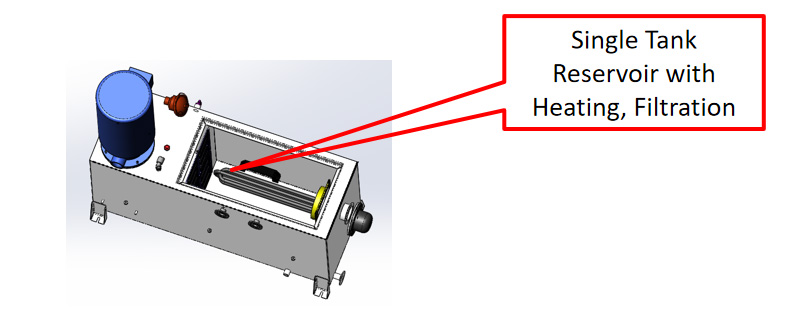

Reservoir :

The cleaning liquid storage tank is used to recover and store the cleaning liquid, and perform preliminary filtering and heating of the cleaning liquid.

liquid storage tank is equipped with a baffle plate and two filter screen structures, and a 50 - mesh filter screen is set at the cleaning liquid return port.

For preliminary filtration, another 80 -mesh filter screen is set under the baffle for secondary filtration.

And can play the role of protecting the spray pump ;

Storage tank volume: ≤ 60L ( 2 pieces)

Heating power: 6KW

Heating temperature: room temperature --80 ℃ (adjustable)

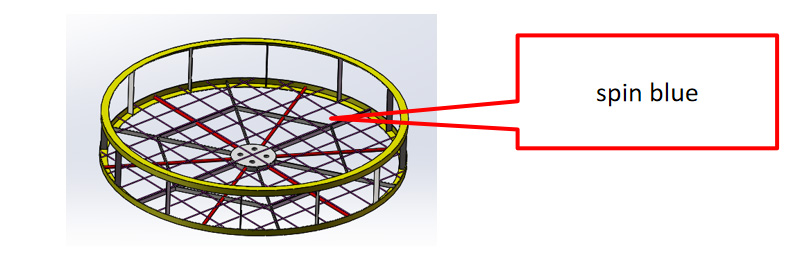

Washing basket rotation device :

 The cleaning basket rotation device is composed of a geared motor, a cleaning basket, a bearing, etc.

The geared motor drives the cleaning basket to rotate smoothly ;

Motor power: 400W

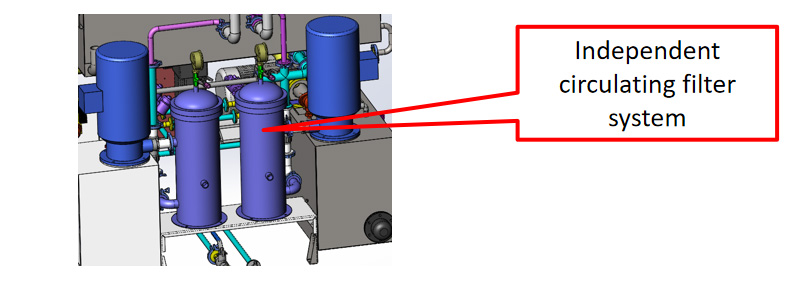

Circulating filter device :

The flow direction of the cleaning liquid is cleaning room → primary filter screen ( 50 mesh) → liquid storage tank → secondary concentrated 3 -core stainless steel bag filter,

Filtration precision: 0.45µ (optional replacement) three-stage filtration → spray pipeline, repeated use.

System structure:

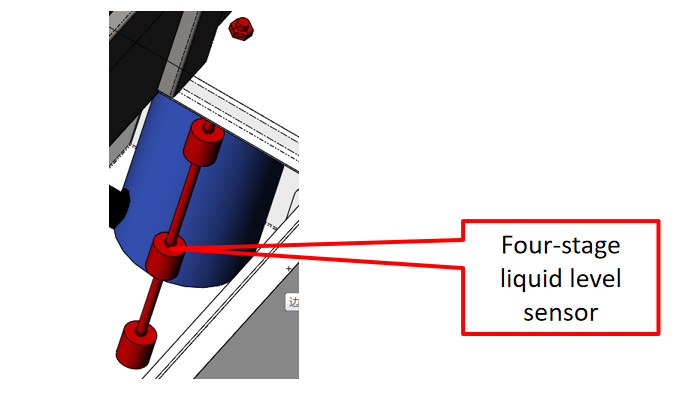

 liquid level sensor:

 Due to the volatilization of water, the repeated entry and exit of the parts into the cleaning tank will inevitably bring out the cleaning liquid.

As well as the overflowing cleaning liquid, the cleaning liquid in the cleaning tank will be lost, so the storage tank is equipped with inlet level sensor. When the liquid level drops to the low and medium level when the warning line is that the sensor sends out an alarm signal, prompting manual rehydration;

Temperature control device:

 The temperature of the liquid storage tank is automatically controlled, which has the advantages of small temperature drift, high reliability and long service life.

Short sampling time, simple setup, the advantages of high temperature control accuracy;

Air drying system:

The high-speed airflow generated by the high-pressure fan during high-pressure wind cutting is heated by the heating chamber, and then through the action of the air knife, the water droplets on the surface of the cleaned workpiece are quickly separated to achieve the purpose of drying the workpiece quickly.

The equipment comes with a high-pressure fan, which also avoids the impact of insufficient compressed air pressure and flow in the factory, effect of using the device;

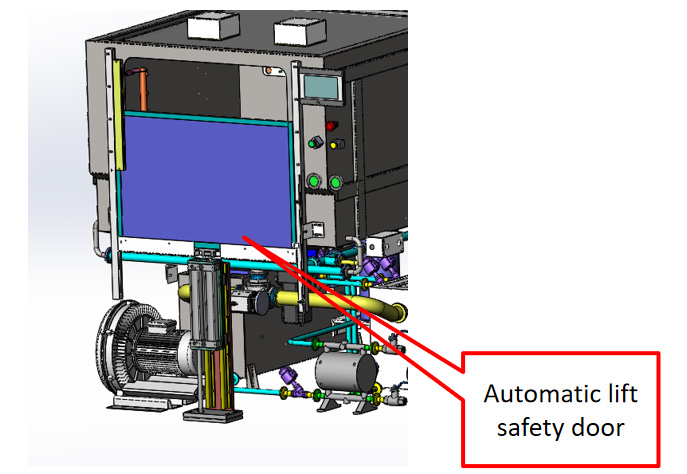

Automatic safety door system:

Automatically open the discharge door, effectively reducing operator fatigue.

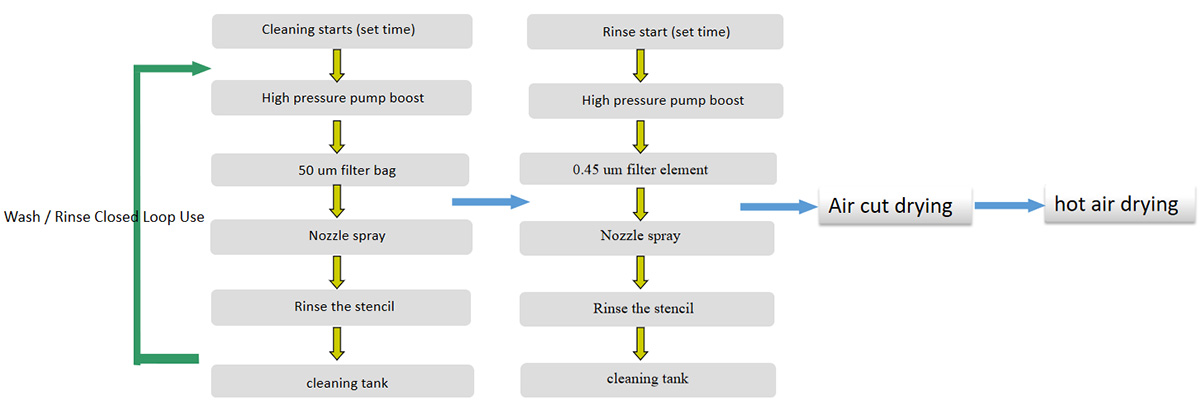

Cleaning Procedure

Features:

1. Rapid & super cleaning effect :

During the operation of the equipment, the workpiece rotates with the cleaning basket in the cleaning basket, and the spraying system sprays the heated cleaning liquid at high pressure. The workpiece can be cleaned in all directions;

2. Standard water-based automatic cleaning mode :

Complete cleaning, rinsing and drying in one cleaning room, with small size and compact structure;

3. Visualization of the whole process :

The cleaning room is equipped with a visual window , and the cleaning process is clear at a glance;

4. Adjustable nozzle pressure and symmetrical design :

Solve the problem of damage to cleaning objects under high pressure spray conditions during the cleaning process;

5. Standard cleaning liquid tank heating system :

The water-based process requires heating and emulsification, which greatly improves the cleaning efficiency and shortens the cleaning time;

6. Low operating cost:

The built-in filtration device can realize the recycling of the solvent, prolong the saturation time of the pollutant load, and at the end of the cleaning, the use of compressed air to recover the residual chemical liquid in the pipeline and the pump can effectively save 50% of the cleaning agent;

7. Can wash oversized cleaning objects ( Φ1000mm×480mm disc ) :

The maximum size of the fixture cleaning machine is : 700 mm(L) *1000 mm(W) *320 mm(H)

Cleaning basket rotation speed: 1-30r/min (adjustable), cleaning basket carrying weight: less than 200kg ;

Adjustable height according to the size of the product that is not cleaned carefully: 350—500 ( mm)

8. High pressure fan + four air knives for air cutting and drying:

Using 7.5HP high pressure fan , higher efficiency ( 3~5 minutes), more thorough!

9. Full Chinese large touch screen operation interface :

Adopt stable and reliable imported brand color touch screen , for : solvent temperature, cleaning time, rinsing times / time, rinsing temperature, drying time, drying temperature, conductivity monitoring parameters, etc ... , set;

10. Security alarm system:

All air pressures require an electronic alarm monitoring meter , which will automatically stop and alarm when the air pressure does not reach the standard;

The upper and lower door opening and closing safety protection equipment is used to put materials and take materials;

The filtration system is equipped with a safety alarm monitoring pressure device;

11. Cleaning method Spray system:

Nozzles are arranged on the top, bottom and sides of the rotating cleaning basket. While the workpiece is rotating, all nozzles spray high-pressure cleaning fluid to clean the workpiece.

All-round spray cleaning, the cleaning liquid after cleaning returns to the liquid storage tank for multiple filtration and heating.
