FEATURES

• In-line automatic PCB separator can load, cut, and un-load PCBs automatically to meet the needs of automatic factory.
• Can automatically adjust width to adapt to the size of PCB. Can automatically differentiate finished PC board from waste-material after cutting for saving labor costs.
• Provide dual worktables for placing and cutting PCB in parallel to enhance the efficiency of operation.
• The system has auto-focusing function and requires no manual operation to adjust focus.
• Use high-speed spindle for cutting with auto tool-change function. Save a lot of time in tool change by hand.
• Automatic detection of broken/dropped/reversed milling tool in auto tool-change.
• The MES central control system can be linked to upper information management system and provide integrated production data to monitor the status of equipment at any time.
• The “upper dust collector” incorporated with “flexible cleaning brush module” enables deepening the milling tool to prolong the life-cycle of the tool’s usage. (GAM 330AT)
• Provide automatic open/close switching for clamp plate.

APPLICATION

• Perform a sequence of in-line operations including loading PCBA panel, cutting PCBA panel, differentiating finished PCBA from waste material, unloading PCBs. separately. Save tremendous labor cost.
• Suitable for cutting small-sized PCBA panel used in cell phone, digital camera, and GPS device.
• Different options of unloading PCBs. Achieve full automation and save labor cost.

SPECIFICATIONS

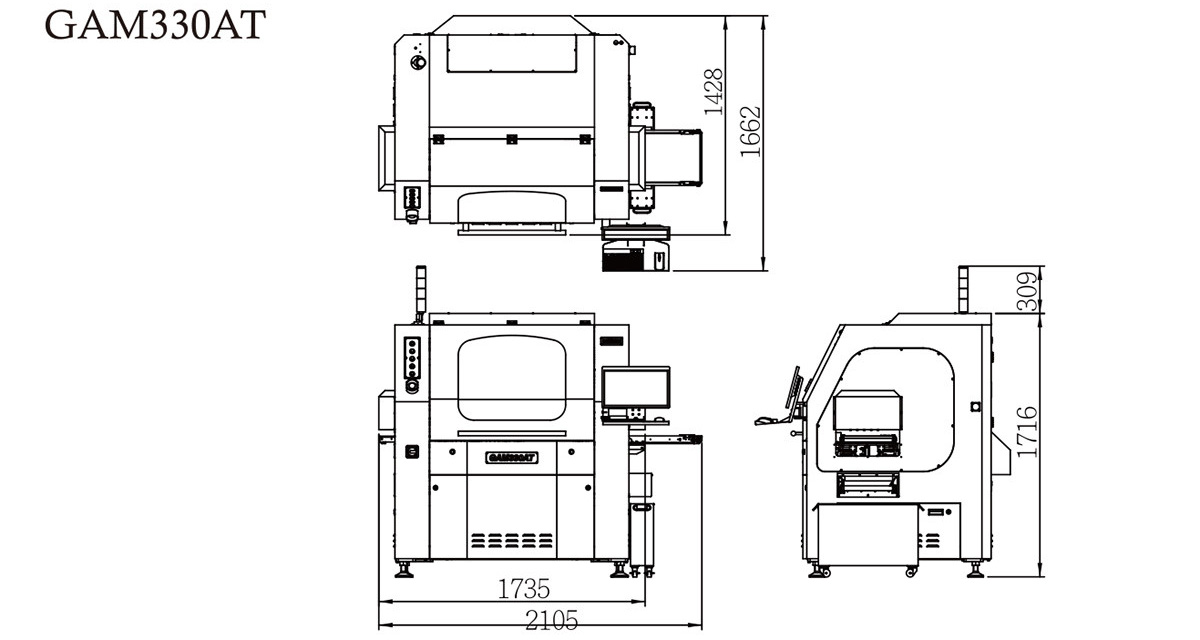

DIMENSIONS
