FEATURES

• Flexible to apply single transfer, then to meet the process connection demand of forward and back. It can be setting between 0~180 degree on taking and placing PCBA.
• All the process are under automatic operation, which are including loading, cutting, replacing of milling tool, unloading and the waste collecting.
• 3 options of unloading of products, contains conveyor, fixture.
• Use CCD to do the vision positioning off-set and alignment which can ensure the cutting precision.
• Assemble with high speed ESD spindle for function of auto tool change, spindle can release the static caused during production, then can reduce the PCBA damage possibility caused via static.
• The patent flexible brush structure is able to do the deepen function for extend milling tool’s life cycle.
• Assemble with high absorption power of dust collector, contains negative pressure detection which will remind user to clean the filter bags.
• Windows10 operation system. Software to be designed by ourselves then can upgrade it continuously

APPLICATION

• Suitable to be used on the panelization PCBA routing process of mobile, wearable device, PC etc.
• Various unloading options of track, fixture on carrier, tray, those are according to process way to choose.

SPECIFICATIONS

DIMENSIONS

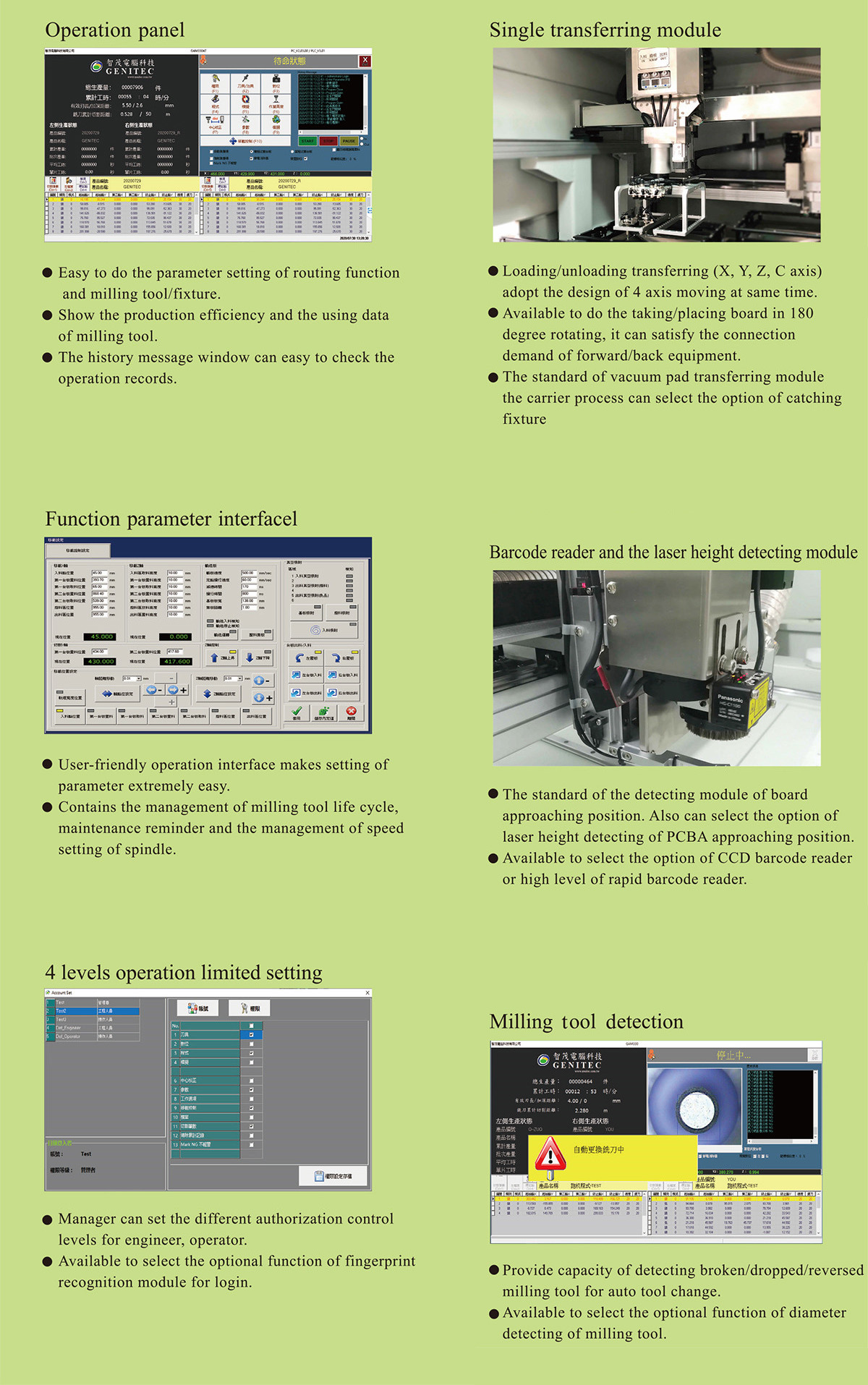

HIGHLIGHTS
